QYT KT-8900 25W Mini Mobile Radio Dual Band Mobile Radio Transceiver

Available: In Stock
$158.99
  • Order within

QYT KT-8900 25W Mini Mobile Radio Dual Band  Mobile Radio Transceiver

Features:

  • Frequency Range: VHF 136-174MHz UHF:400-480MHz
  • Output Power: VHF 25Watt, UHF 20Watt
  • MSK/5Tone/2Tone/DTMF/CTCSS/DCS
  • Optional signal setting
  • FM Radio Function
  • PTT ID
  • Auto Lock
  • Remote stun
  • Remote Kill
  • Channel Name set
  • 200 Channels

Specifications:

General Specifications

  Frequency Range

VHF: 136-174MHz

UHF:400-480MHz

  Channel Capacity

200 channels

  Channel Spacing

25KHz, 20KHz, 12.5KHz

  Channel Step

5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz

  Working Voltage

13.8V DC ±15%

  Squelch way

CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF

  Frequency Stability

±2.5ppm

  Operating Temperature

-20℃~+60℃

  Dimension(W*H*D)

140(W)*43(H)*172(D)mm

  Weight

1030g

Receiver


Wide Band

Narrow band

  Sensitivity

≤0.25μV

≤0.35μV

  Channel chioce

≥70dB

≥60dB

  Intermodulation

≥65dB

≥60dB

  Spurious Rejection

≥70dB

≥70dB

  Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.55KHz)

  Signal to noise ratio

≥45dB

≥40dB

  Audio distortion

≤5%

  Audio output power

≥2W±10%

Transmitter


Wide Band

Narrow band

  Output power

25W/20W (VHF / UHF)

  Modulation Mode

16KΦF3E

11KΦF3E

  Channel Power

≥70dB

≥60dB

  Signal noise ratio

≥40dB

≥36dB

  Parasitic harmonic

≥60dB

≥60dB

  Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.25KHz)

  Audio distortion

≤5%

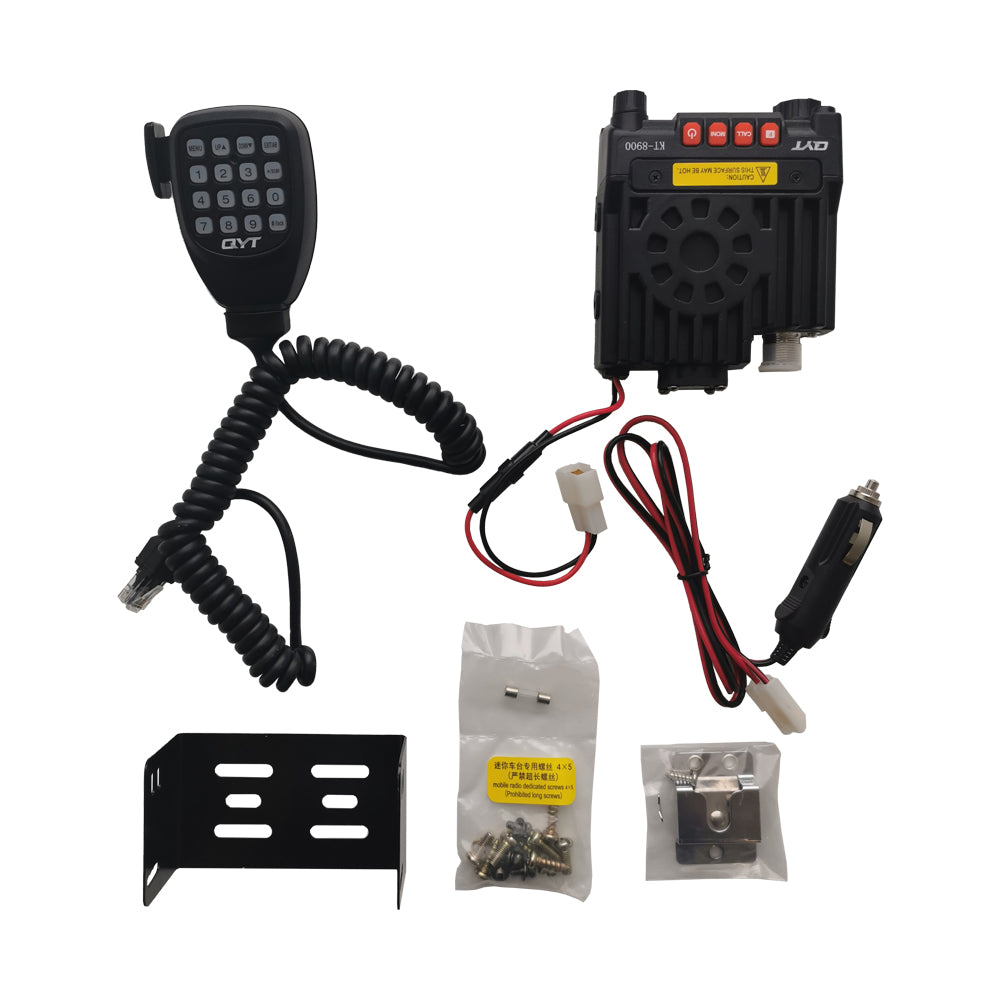

    Package Included:

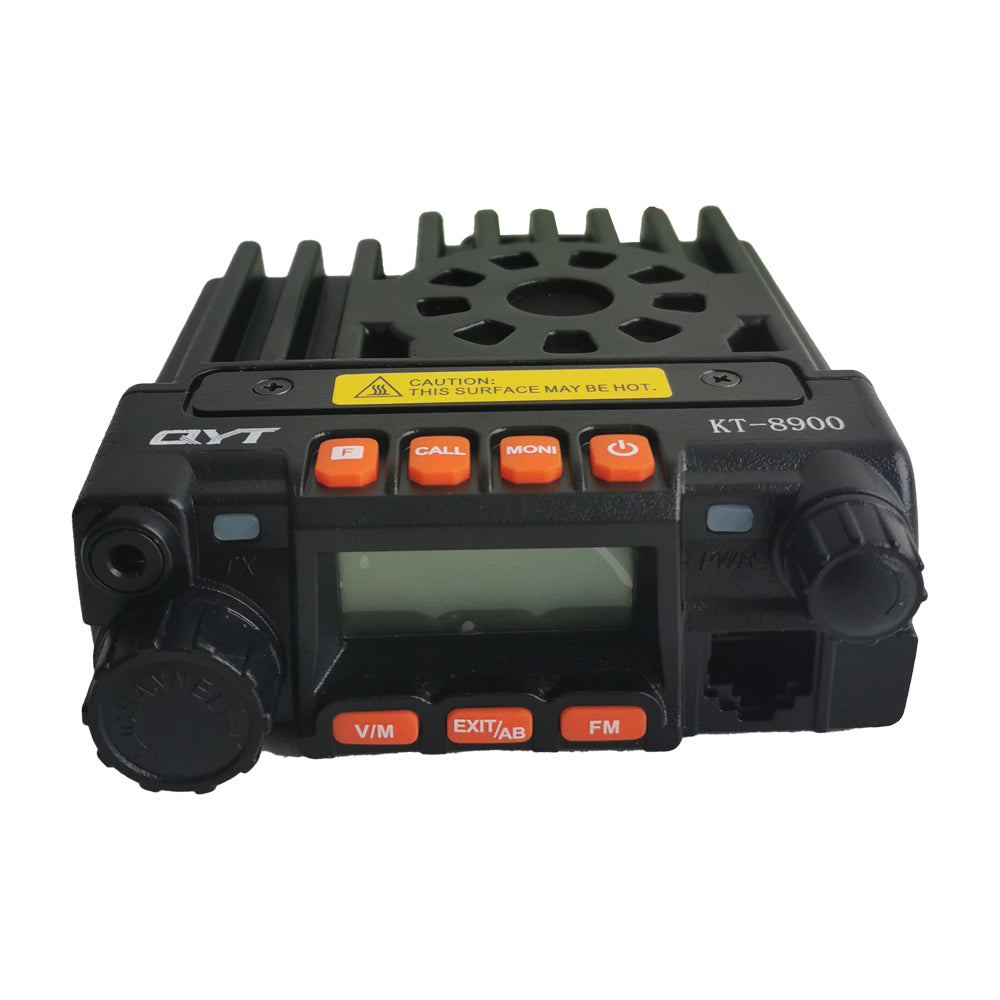

    • 1 x QTY KT-8900 Mobile Radio
    • 1 x Mounting Bracket
    • 1 x Screw and fuse

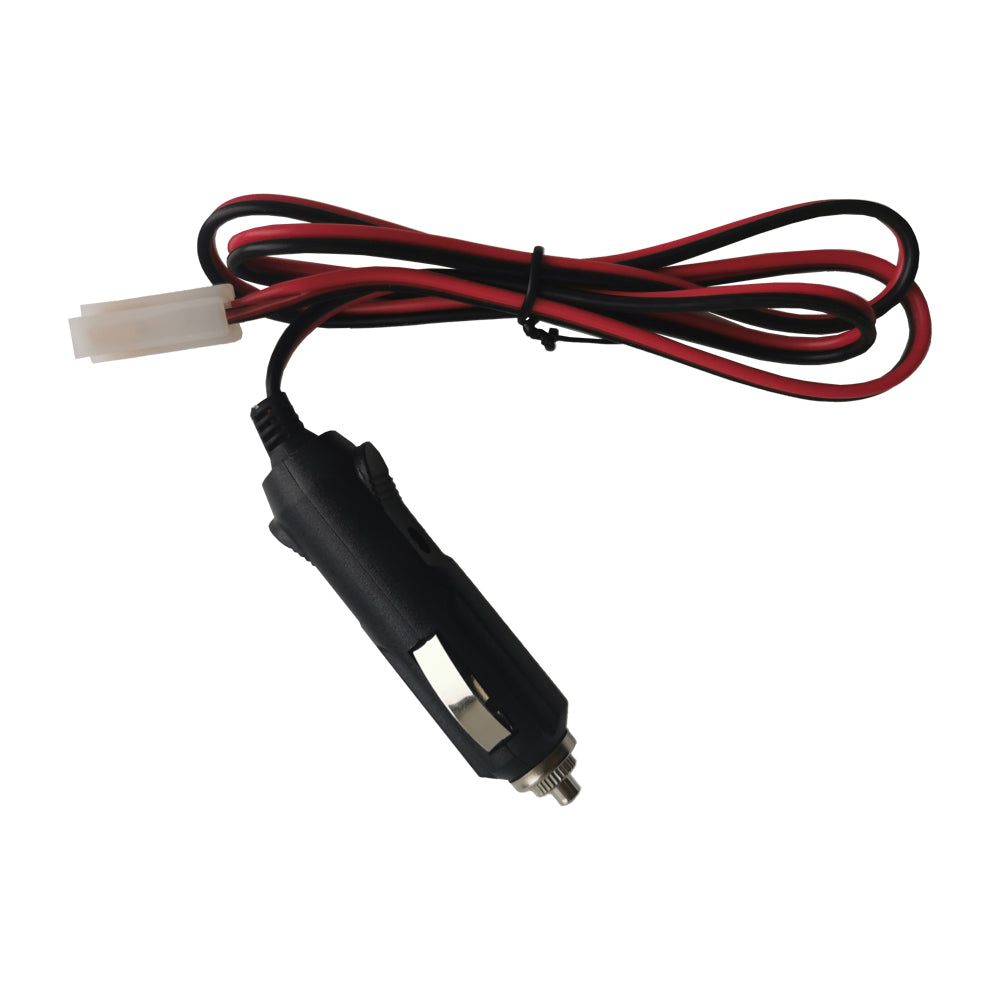

    • 1 x Power cable
    • 1 x User Manual
